[TA58004] 1/12 XR311 Combat Suport Vehicle



An Oldie but a Goodie!

In 1977, the XR311 was released as Tamiyas first suspension equipped buggy. When it first hit the market, it immediately drew huge amounts of attention with its unique off-road capability.

New Features

Modernizations to the chassis include: use of the standard 7.2V battery pack and electronic speed controller, as well as a steel torsion bar instead of the original molded plastic bar. Realistic body

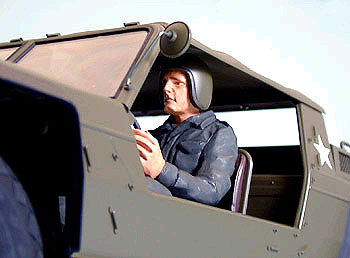

The XR311 plastic body is authentically replicated with precise tooling. Camouflage painting can add more flavor to the military vehicle if you like.

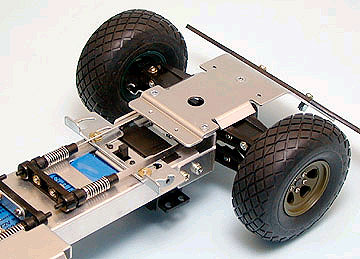

Chassis Specifications
  • Scale: 1/12 scale
  • Overall length: 405mm
  • Overall width: 173mm
  • Overall height: 135mm
  • Weight fully equipped: 1,800g (including TP-S3003 Servo, CPR Unit and RC2400SP Battery)
  • Clearance: 15mm
  • Wheelbase: 260mm
  • Tread (front/rear): 140/144mm
  • Chassis material: duralumin 52S
  • Steering tie rods: 2 segments of an equal length
  • Suspension: front and rear double wishbone
  • Caster angle (front/rear): 0 degree Camber angle (front/rear): 0 degree
  • Toe angle (front/rear): 0 degree
  • Dampers: none
  • Drive system: rear wheel drive
  • Diff. gear system: no
  • Speed Controller: electronic speed controller(Not included)
  • Tire width (front and rear): 29mm Tire diameter (front/rear): 75mm Tread pattern (front and rear): balloon tire
  • 540 type motor included





( 제품설명 )

- 1/12 SCALE 지프차 오프로드이며 한정생산품 입니다.
- 동력구분 ; 전동모터
- 540모터1개 포함 이며, 전자변속기를 사용해야 합니다.(별매)
- 바디 포함( ABS 수지)
- 구동방식 ; 2륜구동
- 길이 : 400mm

(주행에 필요한 기자재)- 별매
- 조종기(송신기, 수신기)
- 7.2V BATTERY
- 7.2V BATTERY용 충전기
